BT 4.5 LDP

Pile

[spin360 canvas_name=”s1″ imgs_folder=”BT45/ldp” aspect_ratio=1 speed=0.3 imgs_nbr=40] Drag to spin

DEC BT 4.5 is great option for piles of 1000mm diameter and 24m depth. It can be equipped with extendable crawlers to add more stability and with modular mast. The BT 4.5 is mounted on Eurocomach ESP100, the only 10 ton excavator available on the market with extendable crawlers.

Base Machine

TypeEurocomach ESP100

EngineYanmar 4TNV98

Engine Power73HP - 53,7kW

Fuel Tank105 l

Hydraulic Tank90 l

  • Drilling Performance

    Diameter1000 mm

    Max Depth24 m

  • Crowd System

    Pull Down Force8000 kgm

    Extraction Force15000 kgm

    Rotary Stroke2000 mm

  • Rotary Head

    Nominal Torque4800 kgm

    Drilling Speed20 RPM

    Spin off Speed60 RPM

  • Transport

    Width2320 mm

    Lenght6800 mm

    Height2870 mm

    Weight approx14000 kg

  • Mast

    Inclination Angle3 deg

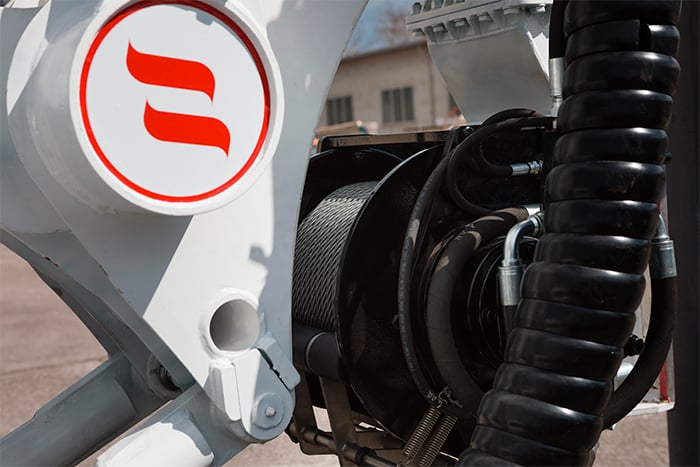

  • Winches

    Main Winch line pull5000 kgm

    Aux Winch line pull1500 kgm

  • Hydraulic System

    Main Pumps185 l

    Secondary Pumps20 l

    Working Pressure290 bar

  • Kelly Bar OptionsØ 355 mm

    Kelly Bar Elements Lenght Depth
    Option 1 4 5000 mm 20 m
    Option 2 5 5000 mm 24 m

    Other kelly bars available on request
